SINOMACH construction machinery engineering equipments crawler hydraulic EXCAVATOR ZG3365LC-9C

FOB Reference Price:Get Latest Price
$143,000.00 - $150,000.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Bucket capacity:
1.7 m3
Operating Weight:
34000kg
Rated Speed:
4.8/2.8km/h
Place of Origin:
Jiangsu, China
Brand Name:
SINOMACH
Model Number:
ZG3365LC-9C
Condition:
New
Moving Type:
Crawler Excavator
Maximum Digging Height:
10210
Maximum Digging Depth:
7380mm
Machine Weight:
34000kg
Max Digging Radius:
11110
Certification:
ISO9001
Product name:
Crawler Hydraulic Excavator
Type:
Hydraulic Crawler Excavator
Engine:
CUMMINS 6CTAA8.3
Arm length:
4200mm
Warranty:
12 months or 1500hours
Main pump:
Variable displacement axial piston pump
Color:
Yellow
Boom length:
6470mm
Power:
186KW/2200rpm
Max. torque:
1219N.m at 1300rpm
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
80 Set/Sets per Month RORO
Packaging & Delivery
Packaging Details
RORO
L*W*H mm 11140*3280*3280
Port
Shanghai Port
Lead Time :
30 days
Product Description

SINOMACH CRAWLER EXCAVATOR ZG3365LC-9C

Original imported hydraulic system, comfortable operation, high efficiency, excellent cost performance; full power control, four power mode to adapt to different conditions; stepper motor precise control throttle , Significantly reduce fuel consumption; full three-dimensional modeling and finite element analysis technology to ensure the reliability and stability of structural parts.


SPECIFICATIONS FOR 34 TON CRAWLER EXCAVATOR
Engine
Diesel Engine
6CTAA8.3-C250
Type
Turbo-charged with inter-cooled
POWER
Kw/rpm
186/2000
6 cylinders
Max. torque
1219N.m at 1300 rpm
Displacement
L
8.29
Main performance parameters
Max Travel Speed
km/h
4.8/2.8
Max. Gradeability
°
<=35
Swing speed
rpm
9.7
Max digging force of bucket
kN
210
Max digging force of arm
kN
191
Ground pressure
Mpa
55
Hydraulic system
Main pump
Variable displacement axial piston pumps
Working pressure
KPa
31.4/34.3
Max. displacement
CC/rev
2×115
Max. Flow Rate
L/min
2*230
Main Features

(1) Use USA imports  C series engine, reliable and durable, to adapt to harsh working conditions under high-intensity, heavy-duty operation;
(2) Japan imports full power control system, complex action coordination, digging force, operating efficiency, fighting with the "heart" action;
(3) High-strength large-scale structural parts, reinforced boom, stick, enhanced bucket, can withstand the extreme conditions of mining and other tests;
(4) LC-type track to strengthen, high strength, wear-resistant, machine operations more secure and stable.
(5) Intelligent electronic monitoring system, real-time monitoring, self-diagnostic fault alarm, maintenance information tips.
(6) Ergonomic cab, spacious and beautiful, low noise, vision and ventilation conditions better.
(7) Import large capacity automatic fluorine-free air conditioning, microprocessor control temperature, operation more simple and comfortable.
(8) Optional automatic fuel filling system, one-button operation, convenient and quick.
(9) Both sides of the platform to increase the anti-collision beam, more effective to prevent the impact of platform deformation.

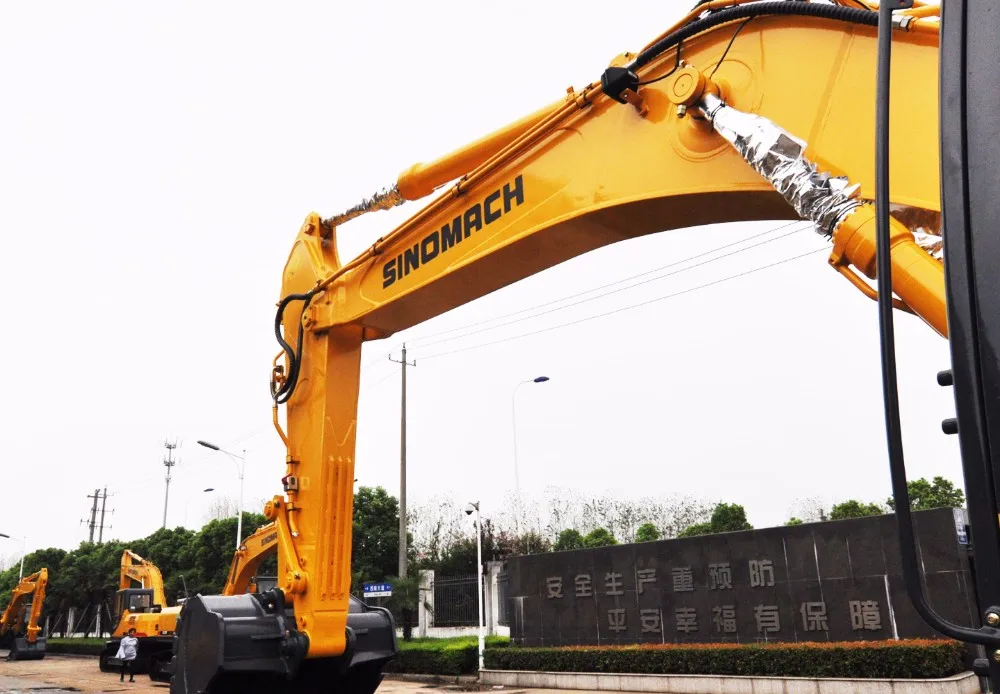

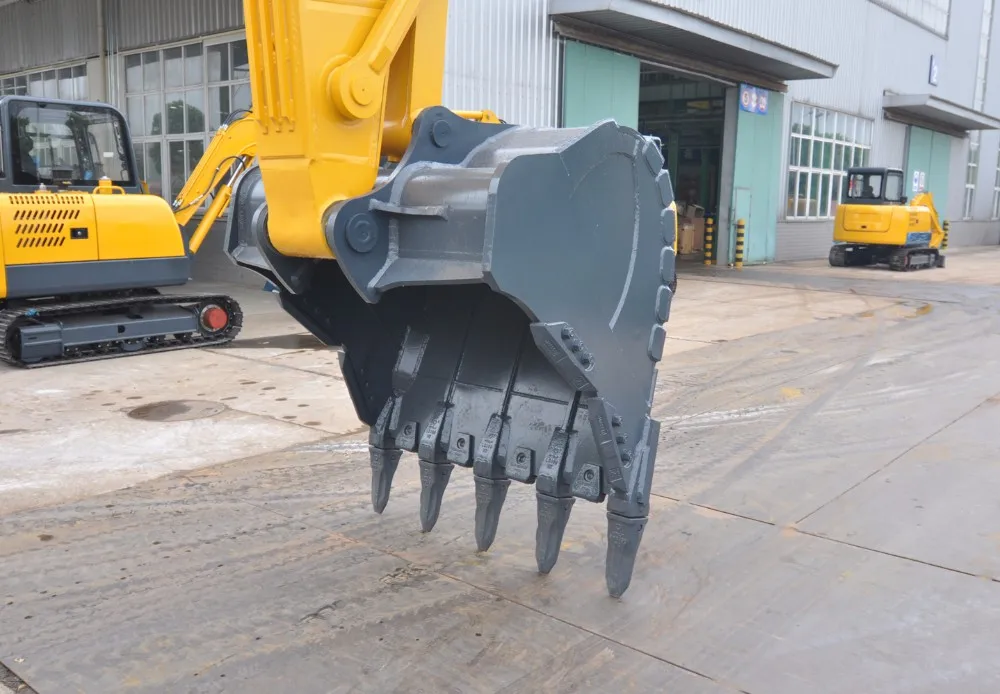

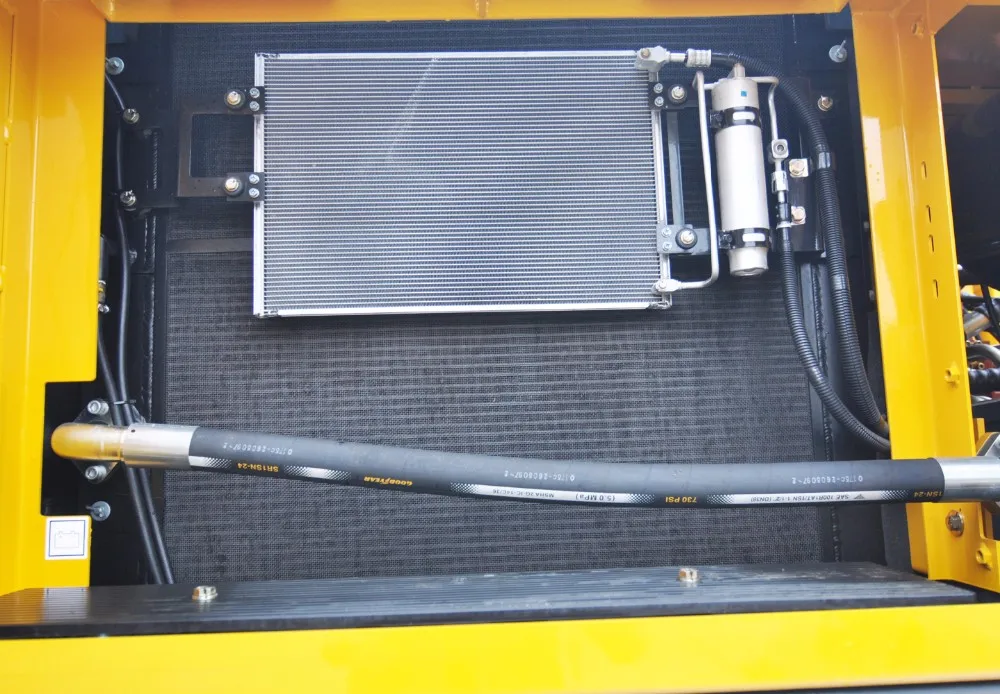

Detailed Images

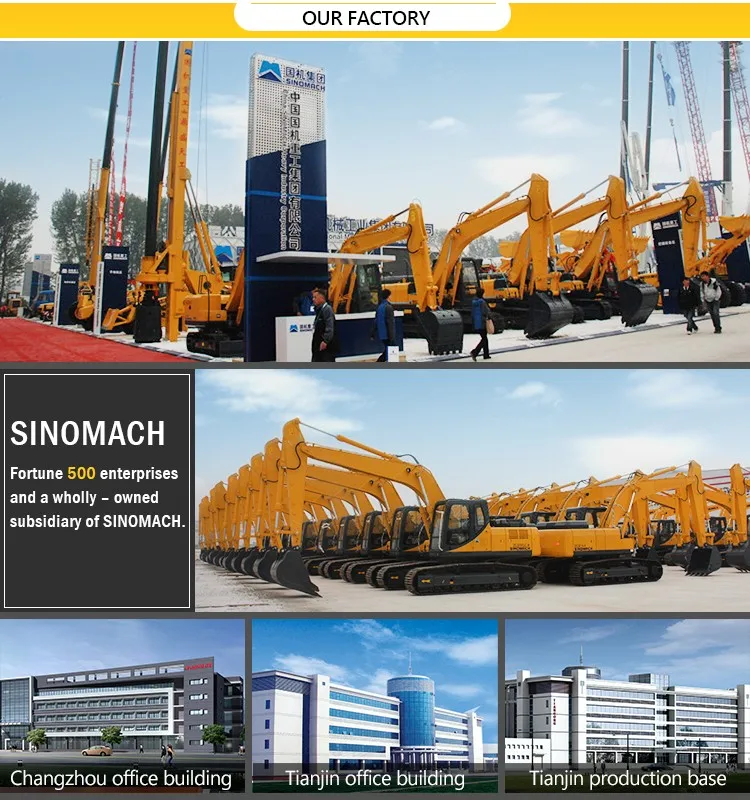

About SINOMACH

        The scientific development of an enterprise requires inheritance and innovation. The past brilliant achievements have accumulated to become our nature and the gorgeous change today has given us the opportunity to pursue the hope.

         In January 2011, China National Machinery Industry Corporation (SINOMACH) effectively integrated its resources of construction machinery business and thus China SINOMACH Heavy Industry Corporation (SINOMACH-HI) was born.

        As one of the Fortune 500 enterprises and a wholly –owned subsidiary of SINOMACH, SINOMACH heavy Industry covers engineering equipments construction machinery an R&D manufacture, service, project contracting, and trade of related fields with the cooperative institutions distributed in more than 100 countries and regions across the world.

        Looking back on the past, SINOMACH Heavy Industry, on the strength of Chinese machine industry, once enjoyed such glories an brilliance as the only national research institute of construction machinery, the first road roller, the first land leveler, and the first wood loader in Chinese construction machinery field in the one hundred years' history of machinery equipment.

        At present, the new SINOMACH-HI is walking in big strides toward a new journey with inheritance and development. Looking into the future, we know there are still much more to be done. SINOMACH Heavy Industry bears the struggling history and passion and dream of business of its staffs. We will always keep the development mission of "Equip the World and Create Value" in mind, stick to the operation philosophy of "Innovation, Self-improvement, Cooperation, and Interdependence", keeps enterprising and pragmatic, and continue with the past and open up the future. We are sincerely anticipating the cooperation with you for creating brilliance together!
